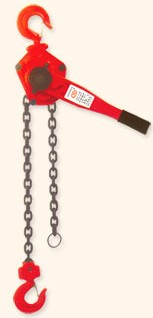

HSHE LEVER BLOCK

The double pawl braking system increase the durability of the block and convience in operation.

HSH-E series lever block equipped with a "Free Brake" system, which permits quick spotting of bottom hook.

Model		HSHE³/₄	HSHE1¹/₂	HSHE3	HSHE6
Capacity (T)		0.75	1.5	3	6
Standard lift (m)		1.5	1.5	1.5	1.5
Test load (T)		1.125	2.25	4.5	9
Headroom (hook to hook) H min (mm)		325	380	480	620
Effort required (N)		140	220	320	340
No.of load chain fall lines		1	1	1	2
Load chain dia (mm)		6	8	10	10
Length of lever handle D (mm)		280	410	410	410

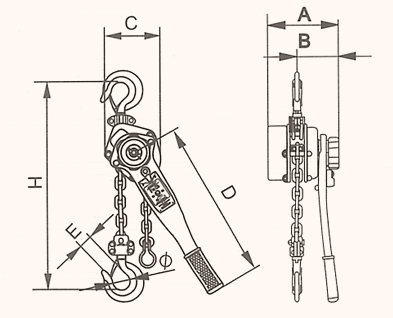

Main Dimentions (mm)	A	148	172	200	200
	B	90	98	115	115
	C	136	160	180	235
	Ø	30	35	40	50
	E	30	35	40	50
Net wt. (Kg)		7	11	21	31
Extra wt. per meter of extra lift (Kg)		0.92	1.6	2.4	4.8
Packing size (LWH) (cm)		381317	481420	55.518.522.5	55.522.520
