Single plate lifting clamp
Single plate lifting clamp
Use: apply for steel-plate horizontal hoist.
Load range: 0-12 tons.
It is manufactured by low-carbon high-quality alloy steel.
Rated load caused by 2 tests is regarded as the standard, and four complementary use during the hoist.

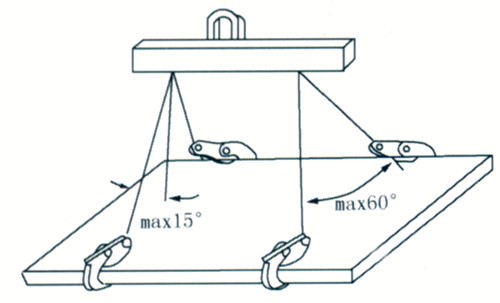

It must be used with the balance beam. During hoist, collision is forbidden for hung articles.
Unhook automatically
Test load is 2 times of the max operation load.
Overload use is forbidden.
| Model | Max work load (t/2pcs) | Test load (t/2pcs) | Aperture size (mm) | Self weight (kg) |
| Single plate1 | 1 | 2 | 0-50 | 3 |
| Single plate2 | 2 | 4 | 0-60 | 5 |
| Single plate3.2 | 3.2 | 6.4 | 0-90 | 12 |
| Single plate5 | 5 | 10 | 0-120 | 17 |
| Single plate8 | 8 | 16 | 0-130 | 25 |
| Single plate12 | 12 | 24 | 0-150 | 30 |
