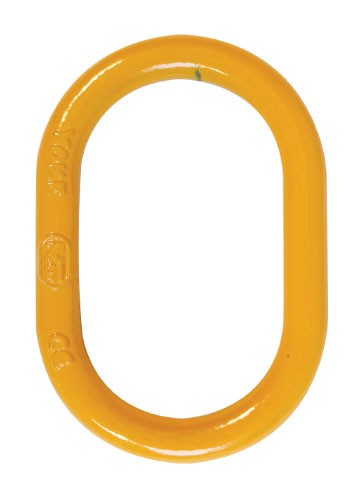

342 FORGED MASTER LINK
A-342 FORGED MASTER LINK

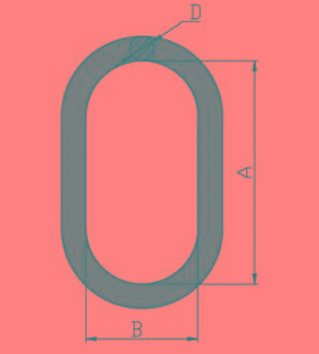

| SIZE | WT. /KG | WLL/T | B.L/T | A | B | D |
| 8-1/2 | 0.36 | 3.2 | 16 | 127 | 63.5 | 13 |
| 8-5/8 | 0.7 | 4.1 | 20.5 | 152 | 76 | 16 |
| 8-3/4 | 0.93 | 5.6 | 28 | 140 | 70 | 19 |
| 8-7/8 | 1.5 | 6.8 | 34 | 160 | 90 | 22 |
| 8-1 | 2.1 | 11 | 55 | 178 | 89 | 25 |
| 8-1-1/4 | 4.24 | 16.4 | 82 | 222 | 111 | 32 |
| 8-1-1/2 | 7.17 | 24.6 | 123 | 267 | 135 | 38 |
| 8-1-3/4 | 11.55 | 38.5 | 192.5 | 305 | 152 | 45 |
| 8-2 | 17.2 | 46.5 | 232.5 | 355 | 178 | 51 |
| 8-2-1/4 | 24.5 | 64.9 | 324.5 | 406 | 203 | 57 |
| 8-2-1/2 | 30.9 | 72.6 | 363 | 406 | 203 | 63.5 |
| 8-2-3/4 | 39.5 | 98.4 | 492 | 406 | 241 | 70 |
| 8-3 | 50.34 | 103.4 | 517 | 457 | 228 | 76 |
| 8-3-1/4 | 65.68 | 119 | 595 | 508 | 254 | 82.5 |
| 8-3-1/2 | 90.24 | 126.5 | 632.5 | 310 | 305 | 89 |
| 8-3-3/4 | 89.27 | 152.4 | 762 | 508 | 254 | 95 |
| 8-4 | 103.43 | 169.2 | 846 | 508 | 254 | 101.6 |
