MASTER LINK ASSEMBLY(NO FLAT DIN5688 MASTER LINK ASSEMBLY)
MASTER LINK ASSEMBLY(NO FLAT DIN5688 MASTER LINK ASSEMBLY)

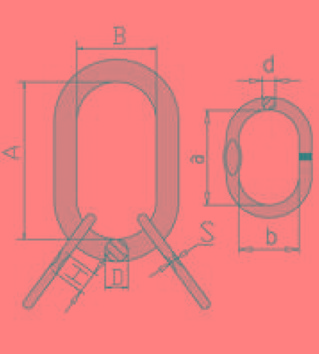

| SIZE | WT. /KG | WLL/T | B.L/T | A | B | D | a | b | d | S | H |
| 8-6 | 1.18 | 2.36 | 9.44 | 135 | 75 | 18 | 54 | 25 | 13 | 7 | 25 |
| 8-7 | 1.24 | 3.15 | 12.6 | 135 | 75 | 18 | 60 | 38 | 13 | 7 | 25 |
| 8-8 | 2.2 | 4.25 | 17 | 160 | 90 | 22 | 70 | 34 | 16 | 7 | 25 |
| 8-10 | 3.4 | 6.7 | 26.8 | 180 | 100 | 26 | 85 | 40 | 18 | 11 | 35 |
| 8-13 | 6.1 | 11.2 | 44.8 | 200 | 110 | 32 | 115 | 50 | 22 | 13 | 35 |
| 8-16 | 9.98 | 17 | 68 | 260 | 140 | 36 | 140 | 65 | 26 | 17 | 45 |
| 8-18 | 18.9 | 21.2 | 84.8 | 340 | 180 | 45 | 180 | 100 | 32 | ~ | ~ |
| 8-20 | 22.6 | 26.5 | 106 | 350 | 190 | 50 | 180 | 100 | 32 | ~ | ~ |
| 8-22 | 25.2 | 31.5 | 126 | 350 | 190 | 50 | 180 | 100 | 36 | ~ | ~ |
| 8-26 | 34.26 | 45 | 180 | 400 | 200 | 56 | 200 | 110 | 40 | ~ | ~ |
| 8-28 | 47.11 | 50 | 200 | 430 | 220 | 63 | 200 | 110 | 45 | ~ | ~ |
| 8-32 | 66.46 | 63 | 252 | 460 | 250 | 72 | 200 | 110 | 50 | ~ | ~ |
