HAND WINCH,W/BELT SERIES
HAND WINCH,W/BELT SERIES
| Pictures | W.L. LBS(KG) | Gear Ratio | Handle L. | Drum-Hub Dia. | Belt Width | Belt L. |

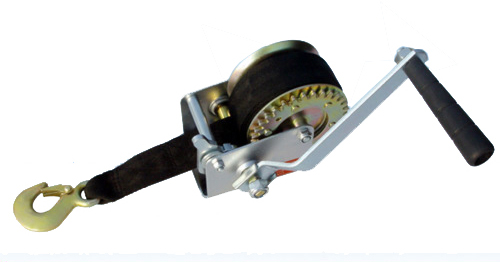

![201012324021579[1].jpg](/Uploads/image/20251227/1766841254718904.jpg "1766841254718904.jpg") | 600(270) | 3.1:1 | 165MM | 16MM | 35MM | 6M |
| 800(360) | 3.1:1 | 175MM | 16MM | 35MM | 6M | |

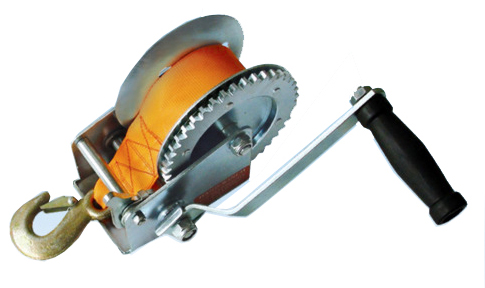

![201012324043793[1].jpg](/Uploads/image/20251227/1766841281459911.jpg "1766841281459911.jpg") | 1000(450) | 4.1:1 | 200MM | 18MM | 50MM | 8M |
| 1200(540) | 4.1:1 | 225MM | 18MM | 50MM | 8M | |
| 1400(630) | 4.5;1 | 225MM | 18MM | 50MM | 8M | |
| 1600(720) | 5.1:1 | 225MM | 20MM | 50MM | 8M | |
| 1800(810) | 4.1:1 & 9.8:1 | 250MM | 20MM | 50MM | 8M | |

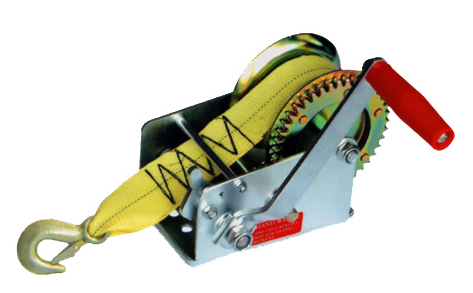

![201012324115751[1].jpg](/Uploads/image/20251227/1766841316714189.jpg "1766841316714189.jpg") | 2000(900) | 4.1:1 & 9.8:1 | 250MM | 20MM | 50MM | 8M |
| 2500(1100) | 5.1:1 & 12.2:1 | 275MM | 42MM | 50MM | 8M | |
| 3000(1350) | 5.1:1 & 12.2:1 | 290MM | 42MM | 50MM | 8M |
