HAND WINCH,W/CABLE SERIES
HAND WINCH,W/CABLE SERIES
| Pictures | W.L. LBS(KG) | Gear Ratio | Handle L. | Drum-Hub Dia. | Cable Dia. | Cable L. |

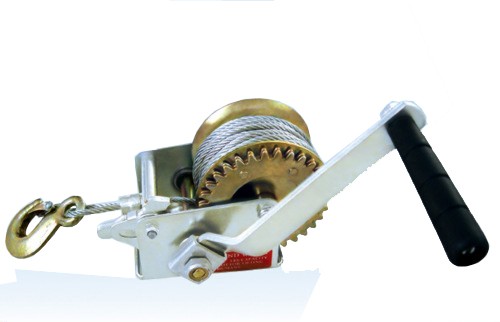

![201012323422453[1].jpg](/Uploads/image/20251227/1766840590855965.jpg "1766840590855965.jpg") | 600(270) | 3.1:1 | 165MM | 16MM | 4.2MM | 8M |
| 800(360) | 3.1:1 | 175MM | 16MM | 4.2MM | 8M | |

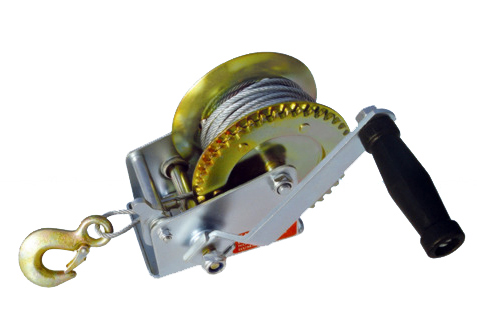

![201012323454492[1].jpg](/Uploads/image/20251227/1766840622389042.jpg "1766840622389042.jpg") | 1000(450) | 4.1:1 | 200MM | 18MM | 4.2MM | 10M |
| 1200(540) | 4.1:1 | 225MM | 18MM | 4.2MM | 10M | |
| 1400(630) | 4.5;1 | 225MM | 18MM | 4.5MM | 10M | |
| 1600(720) | 5.1:1 | 225MM | 20MM | 4.5MM | 10M | |
| 1800(810) | 4.1:1 & 9.8:1 | 250MM | 20MM | 5MM | 10M | |

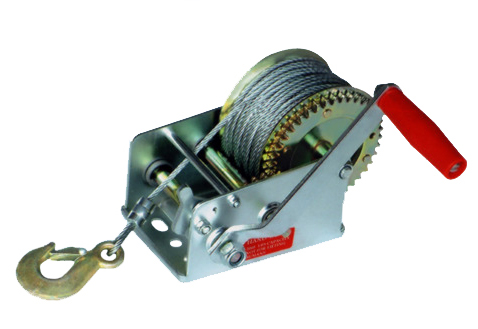

![201012323546784[1].jpg](/Uploads/image/20251227/1766840667877031.jpg "1766840667877031.jpg") | 2000(900) | 4.1:1 & 9.8:1 | 250MM | 20MM | 5MM | 10M |
| 2500(1100) | 5.1:1 & 12.2:1 | 275MM | 42MM | 5MM | 10M | |
| 3000(1350) | 5.1:1 & 12.2:1 | 290MM | 42MM | 5MM | 10M |
